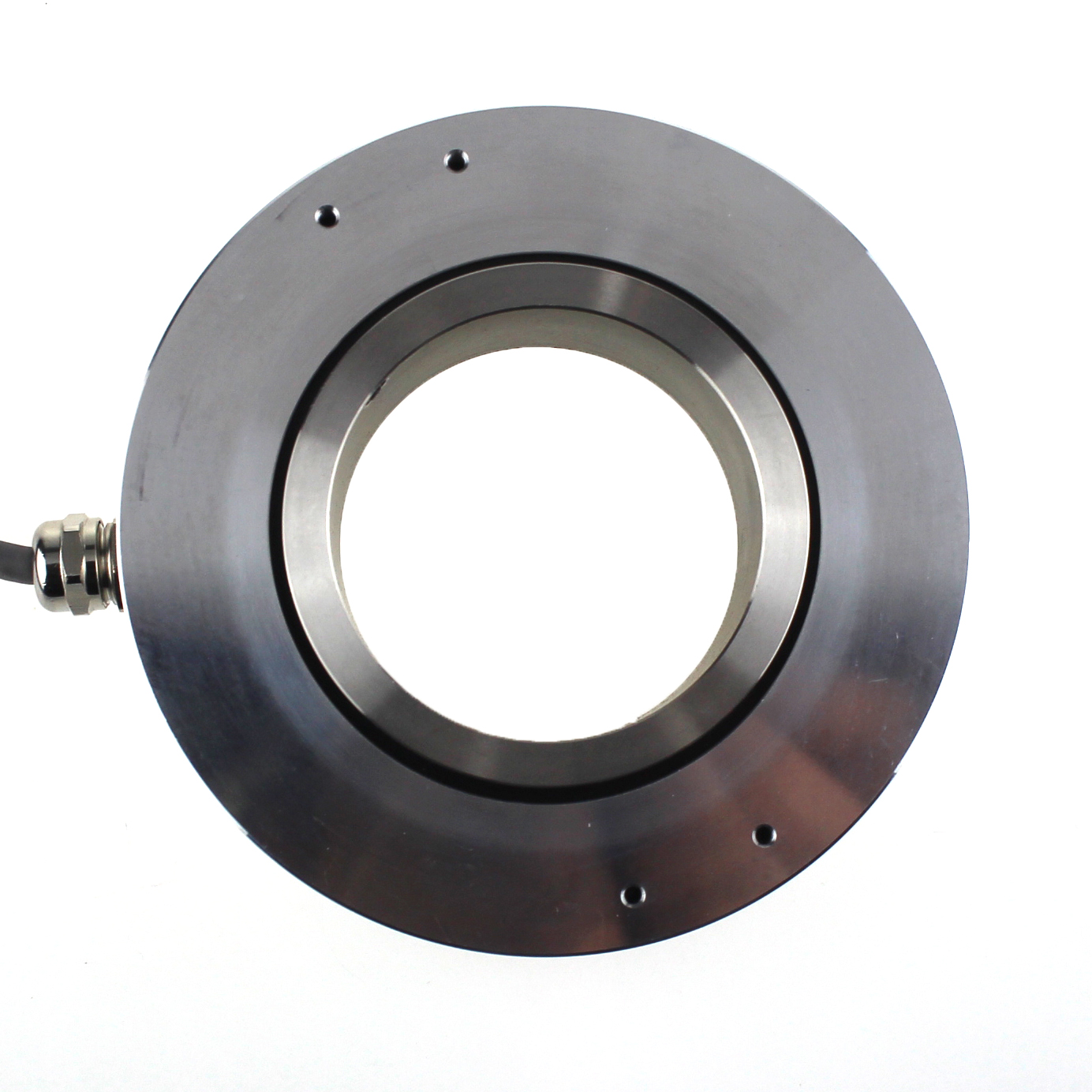

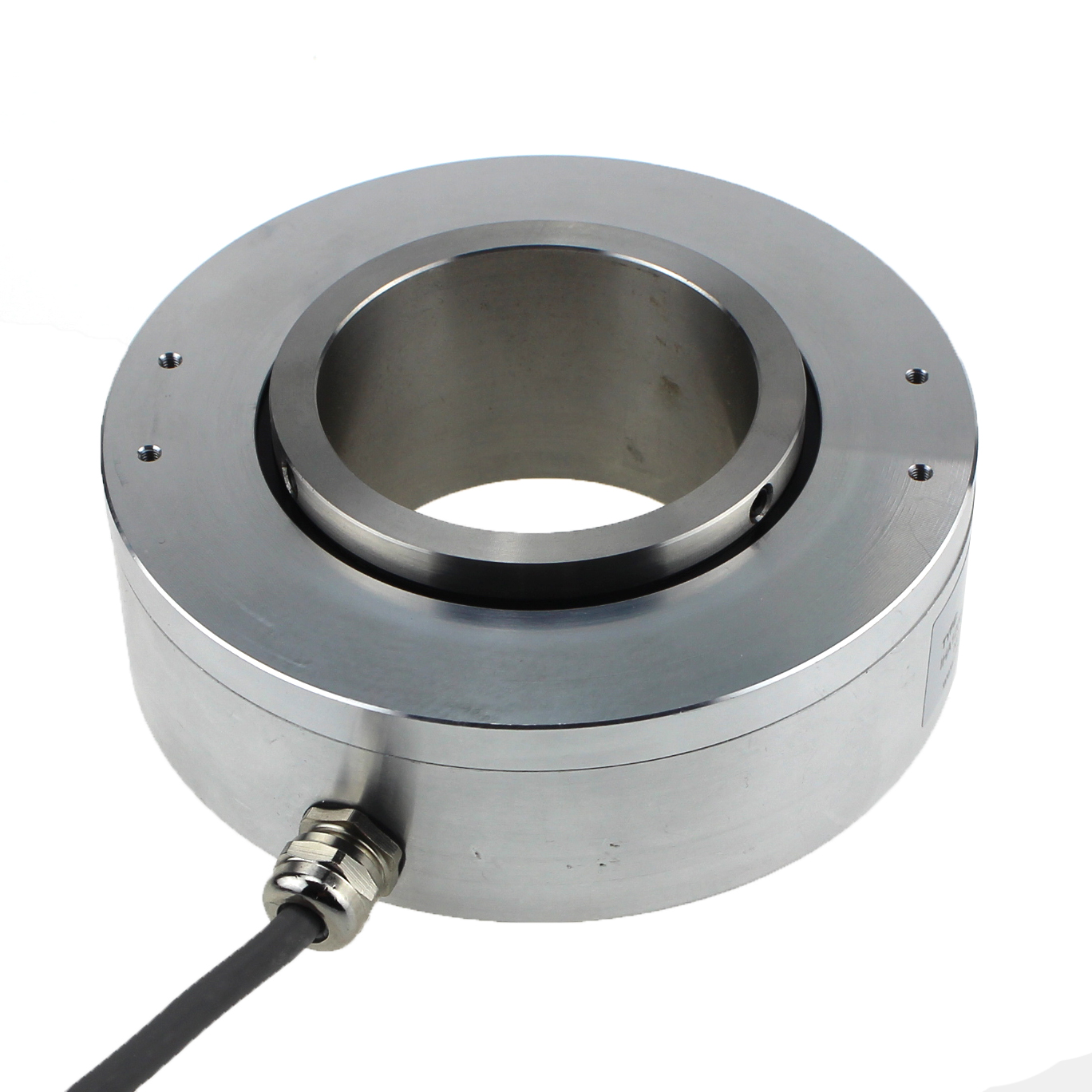

IHA12060 Outer Diameter 120mm hollow shaft encoder

Features ● 2 quadrature output channel (A&B) + index signal ● Resolution up to 8192 cpr ● Housing size: 120mm, hollow shaft dia: 60mm
Availability:
Inquire Add to Basket

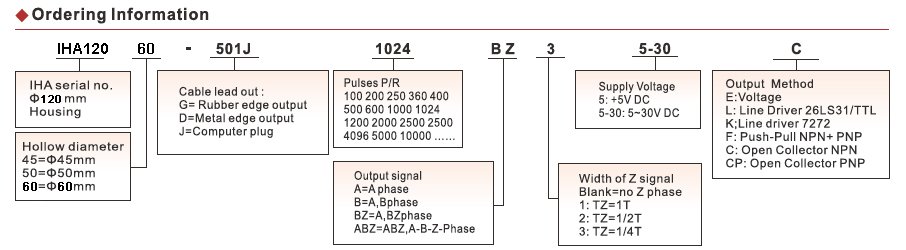

  • IHA12060-001G-8192BZ3-5L


Note
1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5-30V DC option

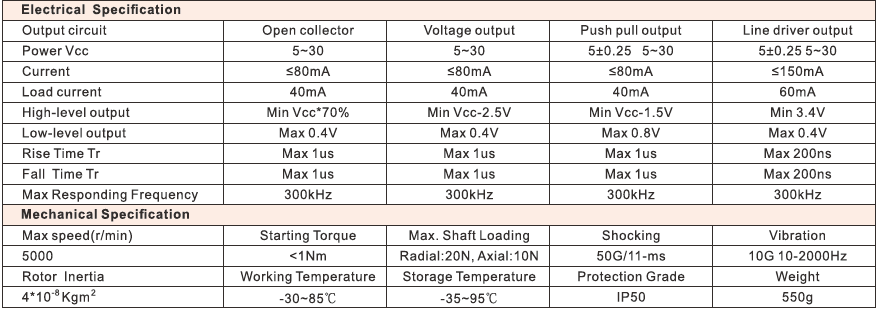

Technical Specifications



Connection Table

connection table.png

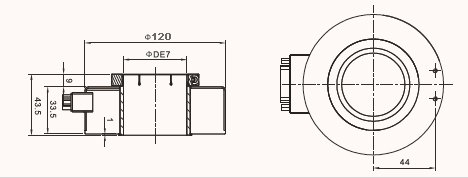

Dimension


Output Waveform

output-waveform


Previous:
Next:

RANDOM PRODUCTS

AF-10MR-D2 Programmable Logic Controller plc controller PLC
AF-10MR-D2 Programmable Logic Controller plc controller PLC
HKT3004 2 And 3 Channel Kit Optical Encoder Hollow Shaft Incremental Motor Encoder
HKT3004 2 And 3 Channel Kit Optical Encoder Hollow Shaft Incremental Motor Encoder
LMF2 Inductive proximity switches sensors
LMF2 Inductive proximity switches sensors
LMF5 Inductive proximity switches sensors
LMF5 Inductive proximity switches sensors

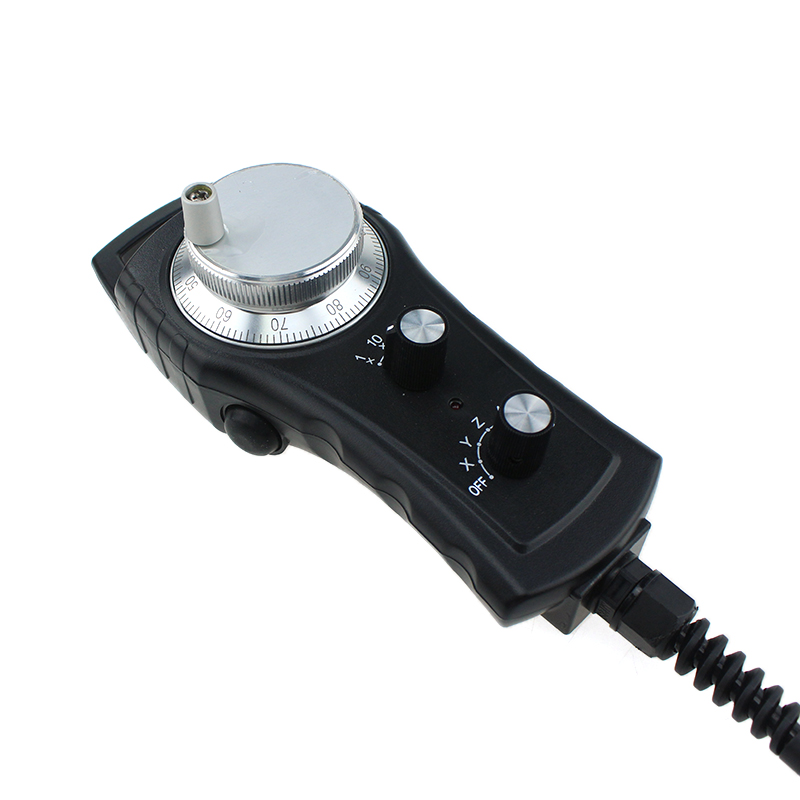

CNC Machine 100PPR Long Drive Handwheel Manual Encoder
