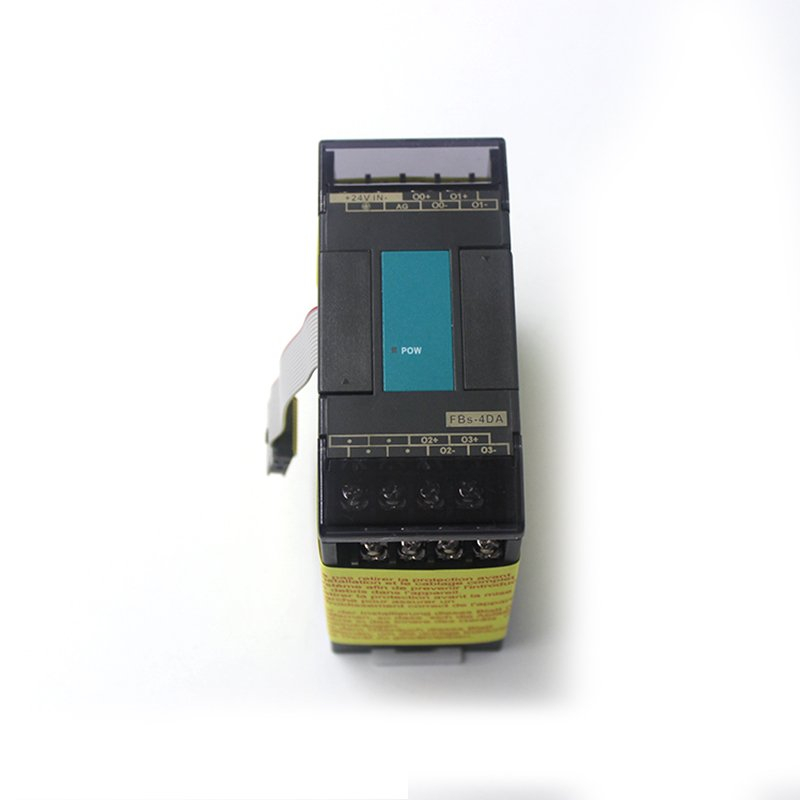

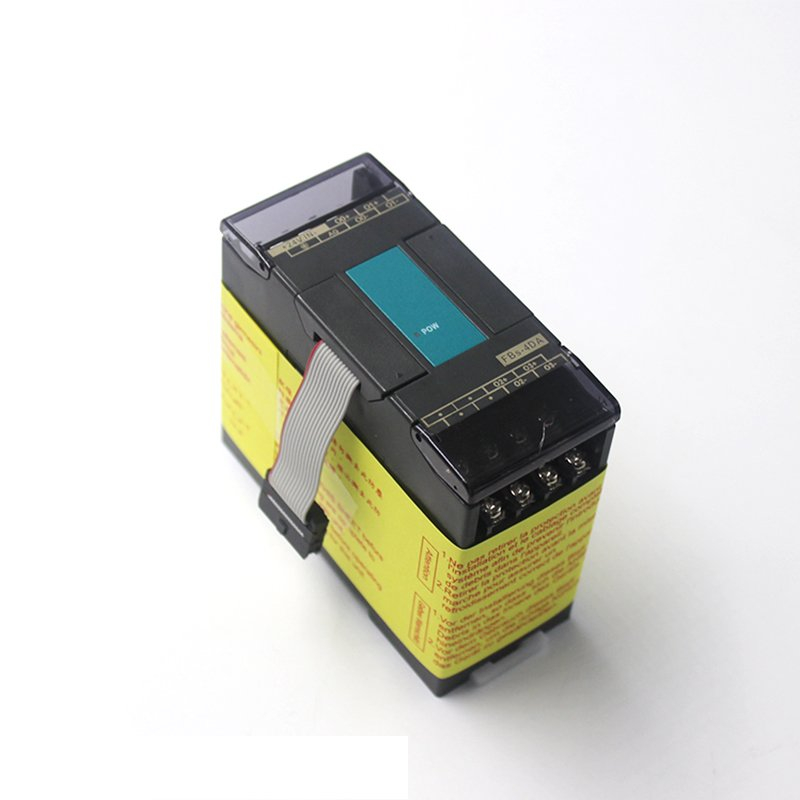

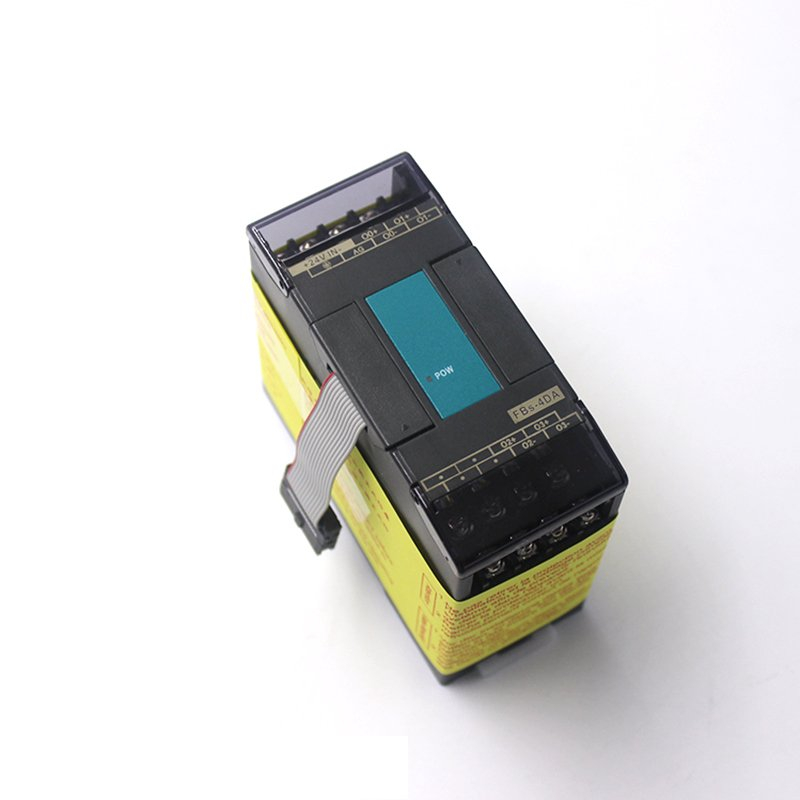

FBs-4DA
Technical Parameters:
| Specification | FBs-4DA | |
| Input point | ||
| Output point | 4 points | |
| Input/Output value | -8192~8191 or 0~16383 (14-bit) | |
| Input/output Signal range | Bipolar | Voltage: -10~10V or -5~5V Current: -20~20mA or -10~10mA |
| Unipolar | Voltage: 0~10V or 0~5V Current: 0~20mA or 0~10mA | |
| Maximum resolution | Voltage: 0.3mV (5V/16384) Current: 0.61μA (10mA/16384) | |
| Accuracy | ±1% | |
| Conversion time | Conversion once for each scan | |
| Maximum input signal | ||
| Allowable load range | Output voltage: 500Ω~1MΩ Output current: 0~500Ω | |
| Input impedance | ||
| Isolation method | Transformer(power) and photocouple(signal) isolation, 500VAC, 1 minute, no isolation between each channel | |
| Power consumptio | 24VDC -15%/+20%, 3.2W max. | |
| Wiring mechanism | 7.62 mm fixed terminal block | |
Model
FBs-2DA | 2 channels, 14-bit analog output module (-10~10V, 0~10V or -20~20mA, 0~20m |
FBs-4A2D | 4 channels, 14-bit analog input (same specification as 6AD)+2 channels, 14-bit analog output (same specification as 2DA) combo module |
FBs-6AD | 6 channels, 14-bit analog input module (-10~10V, 0~10V or -20~20mA, 0~20m |
FBs-6RTD | 6 channels, RTD temperature input module with 0.1°C resolution. |
FBs-8X | 8 points 24 VDC digital input |
FBs-8YR | 8 points relay output |
