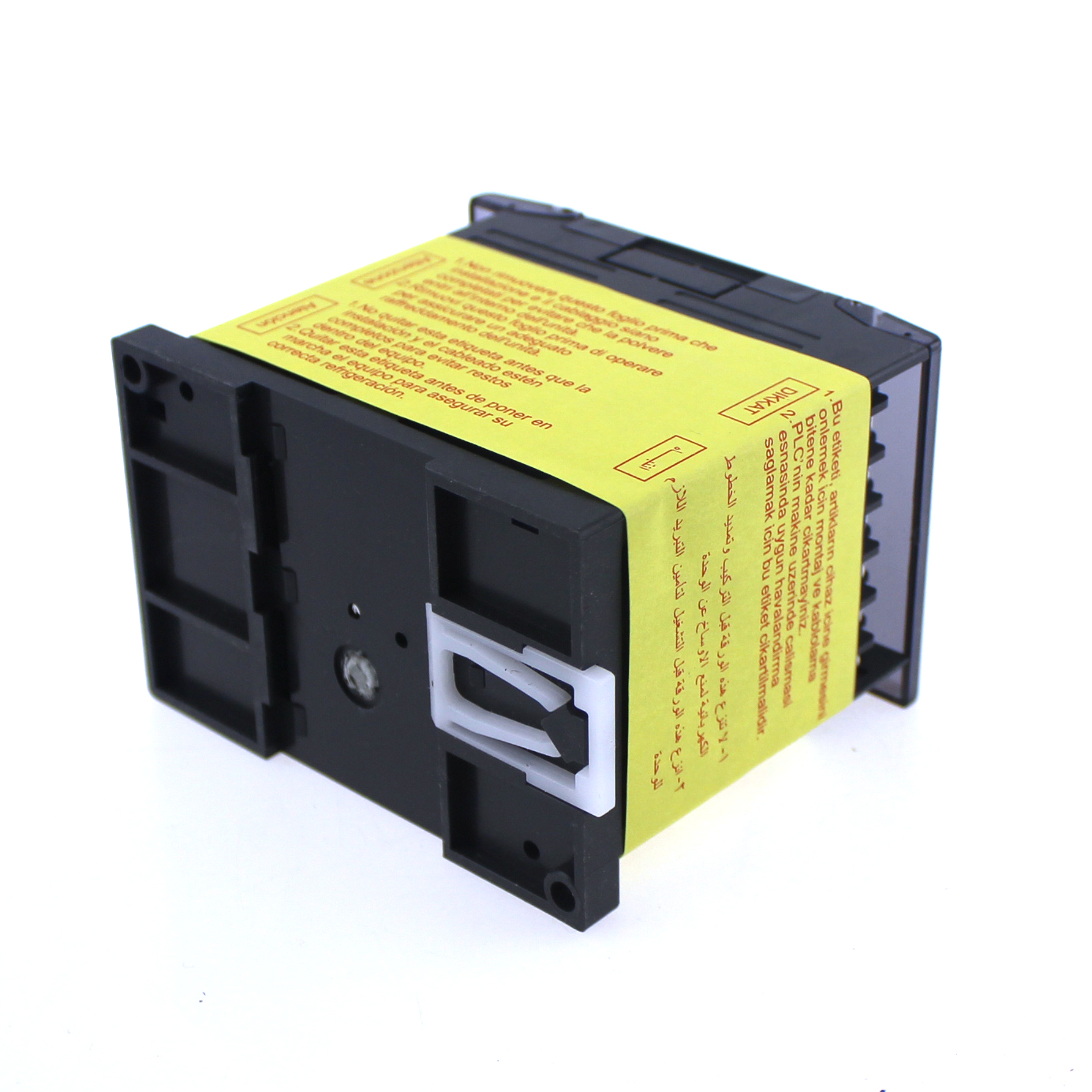

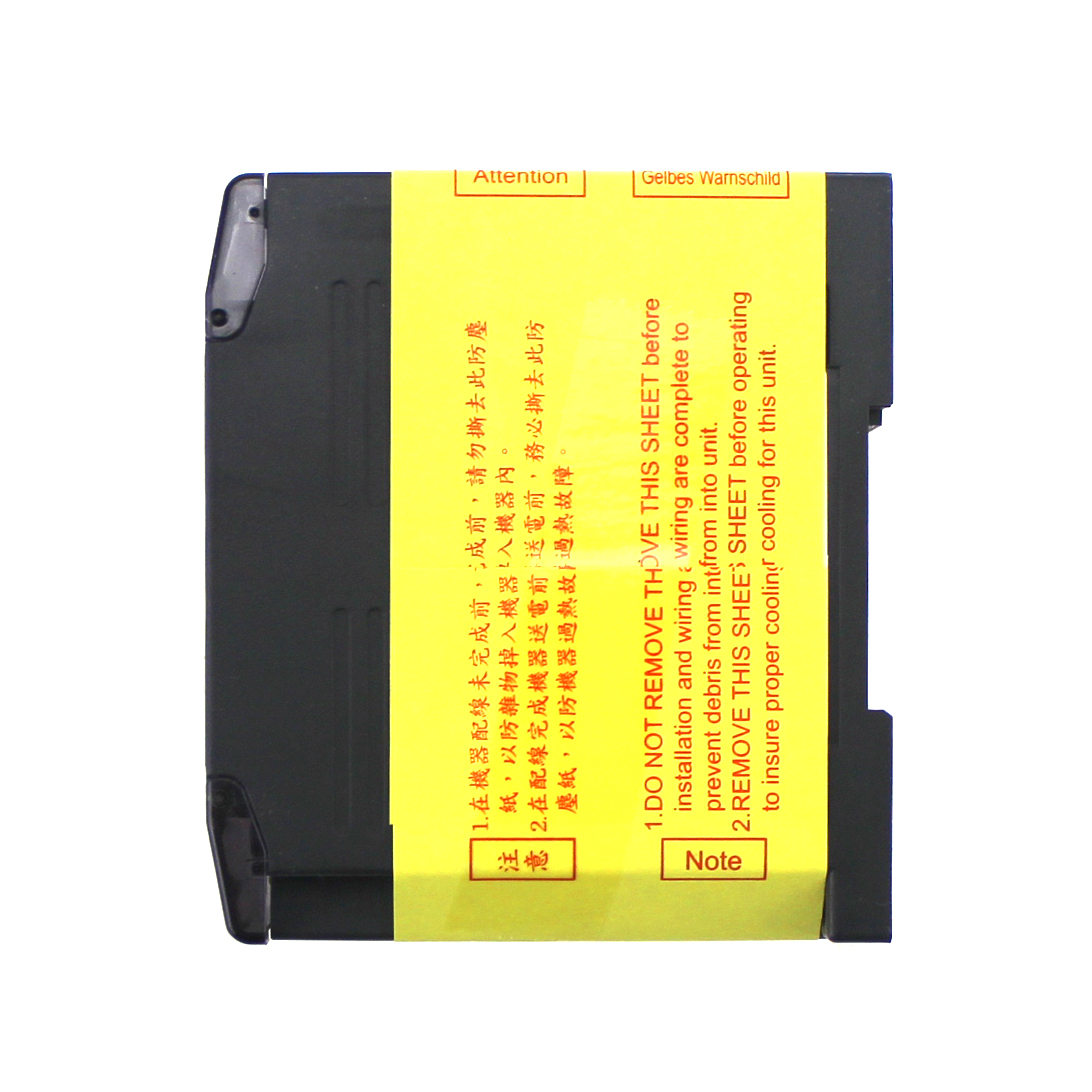

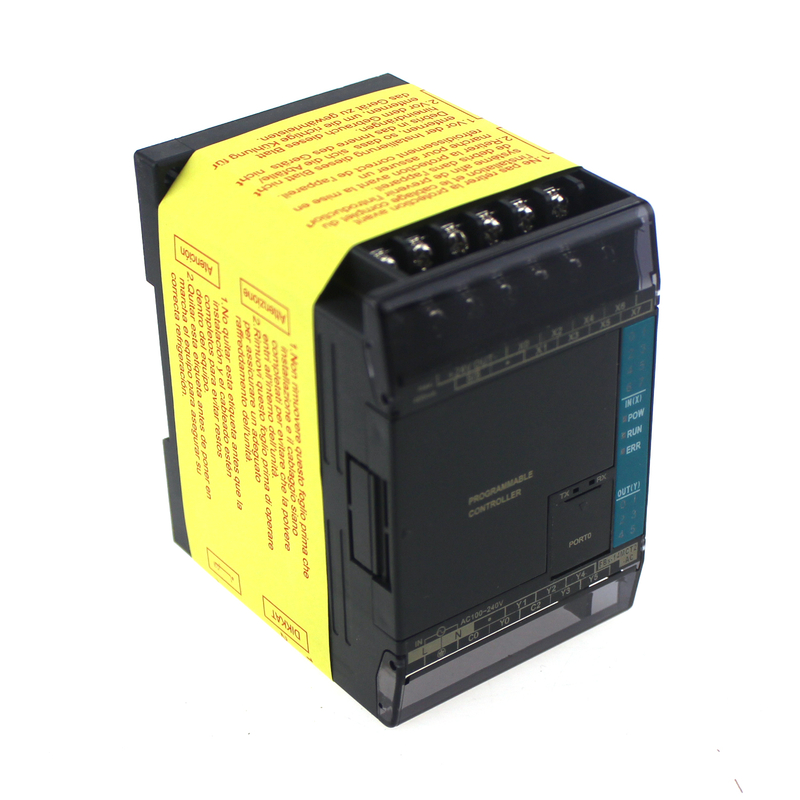

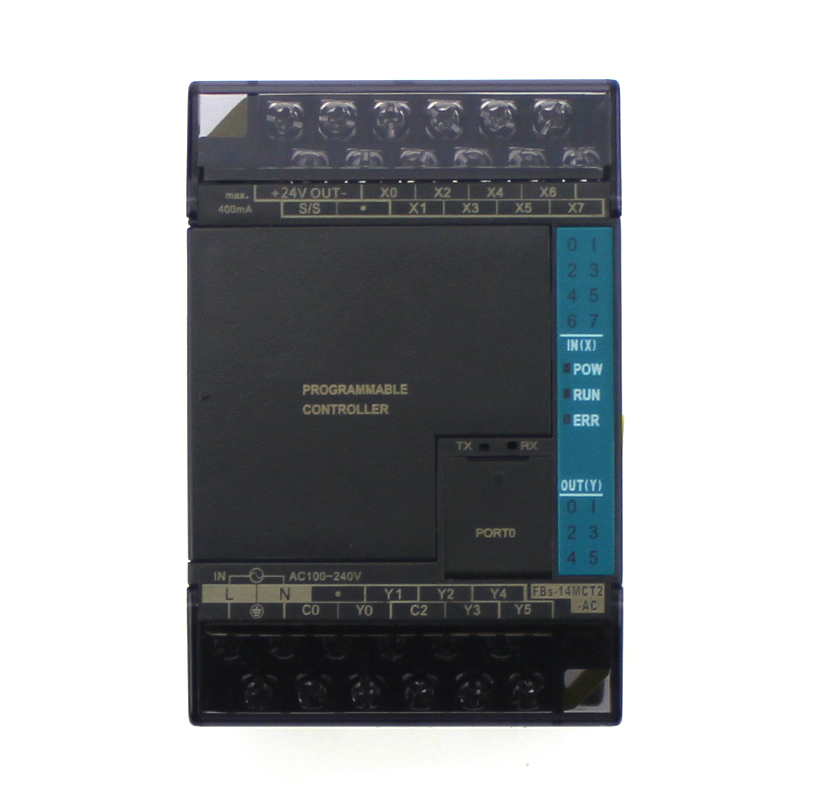

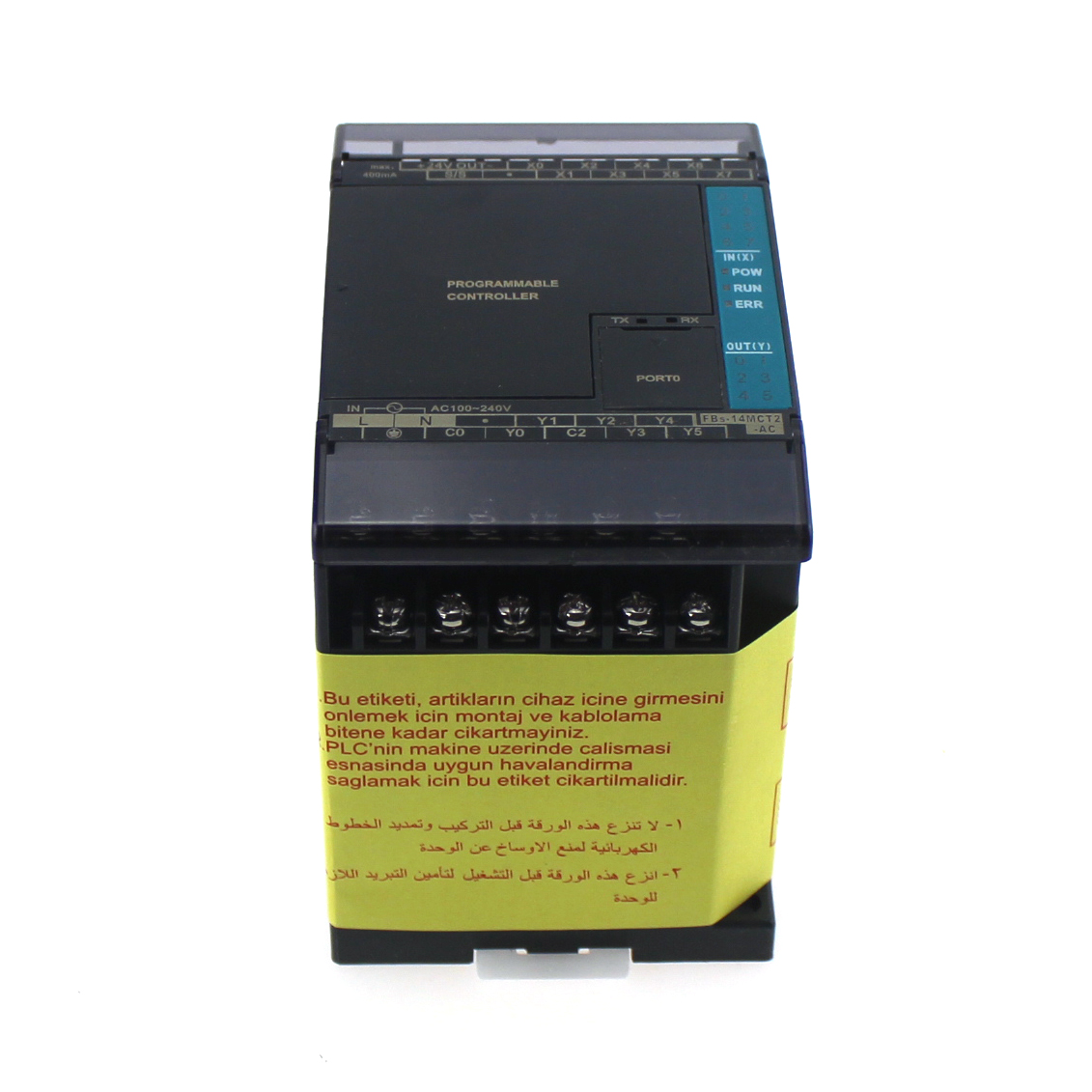

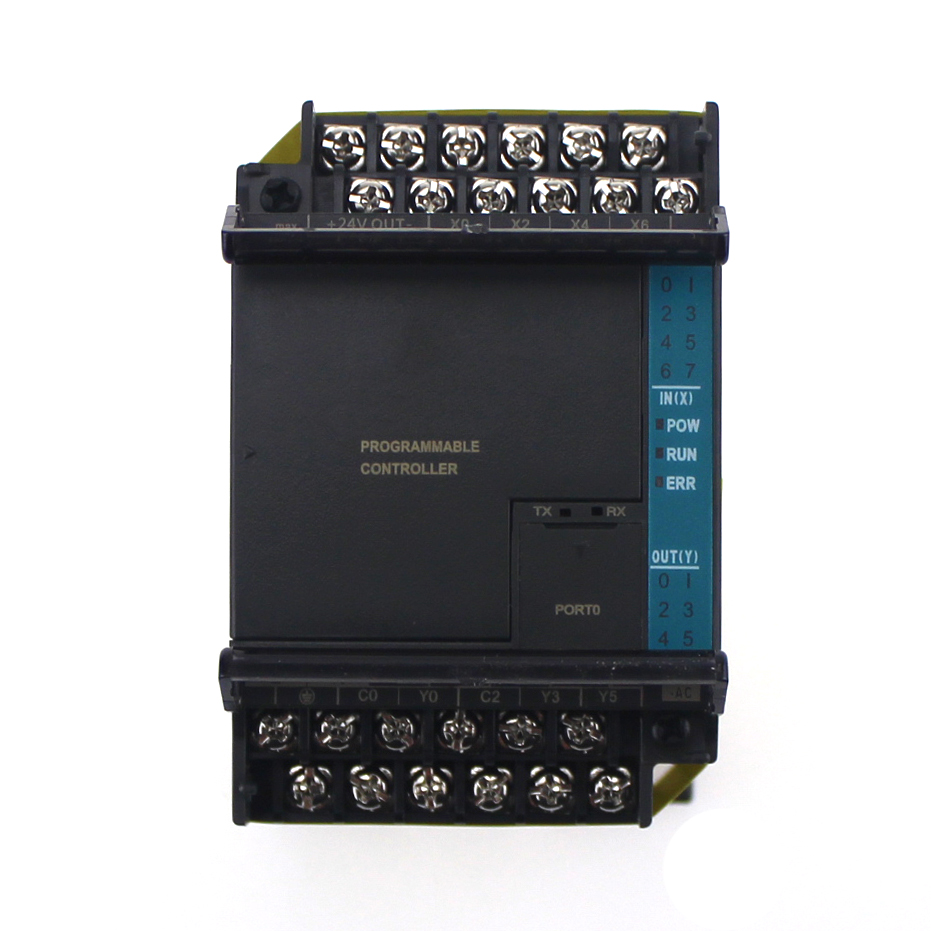

FBS-14MCT2-AC Programmable Logic Controller Module 4 Analogic Outputs Fatek PLC

---14 points 24VDC digital input (4 points high speed 200KHz, 4 points medium speed 20KHz, 6 points medium speed total 5KHz); ---10 points relay or transistor output (4 points high speed 200KHz, 4 points medium sped 20KHz); ---1 RS232 or USB port (expandable up to 5); built-in RTC; ---detachable terminal block
Availability:
Inquire Add to Basket

  • FBS-14MCT2-AC


Technical Parameters:


Specification FBs-24MCR FBs-14MCT/J
Digital Input 24VDC High speed
(200KHz)		 4 points
Medium speed
(20KHz)		 4 points
Medium speed
(Total 5KHz)		 6 points
Digital output Relay 10 points
Transistor High speed
(200KHz)
4 points
Medium speed
(20KHz)
4 points
Low speed
2 points
Communication
Port		 Built-in 1 port (Port0, USB or RS232)
Expandable 4 ports (Port1~4, RS485 or RS232 or Ethernet or GSM or ZigBee)
Calendar Built-in
Built-in power supply SPW24-AC/D12/D24
Wiring mechanism 7.62mm detachable terminal block



Old model Alternative new model
Basic Main Unit
FBs-10MA FBs-10MAR2-AC
FBs-14MA FBs-14MAR2-AC
FBs-20MA FBs-20MAR2-AC
FBs-24MA FBs-24MAR2-AC
FBs-32MA FBs-32MAR2-AC
FBs-40MA FBs-40MAR2-AC
FBs-60MA FBs-60MAR2-AC
FBs-10MAT FBs-10MAT2-AC
FBs-14MAT FBs-14MAT2-AC
FBs-20MAT FBs-20MAT2-AC
FBs-24MAT FBs-24MAT2-AC
FBs-32MAT FBs-32MAT2-AC
FBs-40MAT FBs-40MAT2-AC
FBs-60MAT FBs-60MAT2-AC
FBs-32MA-B FBs-32MBR2-AC
FBs-40MA-B FBs-40MBR2-AC
FBs-60MA-B FBs-60MBR2-AC
