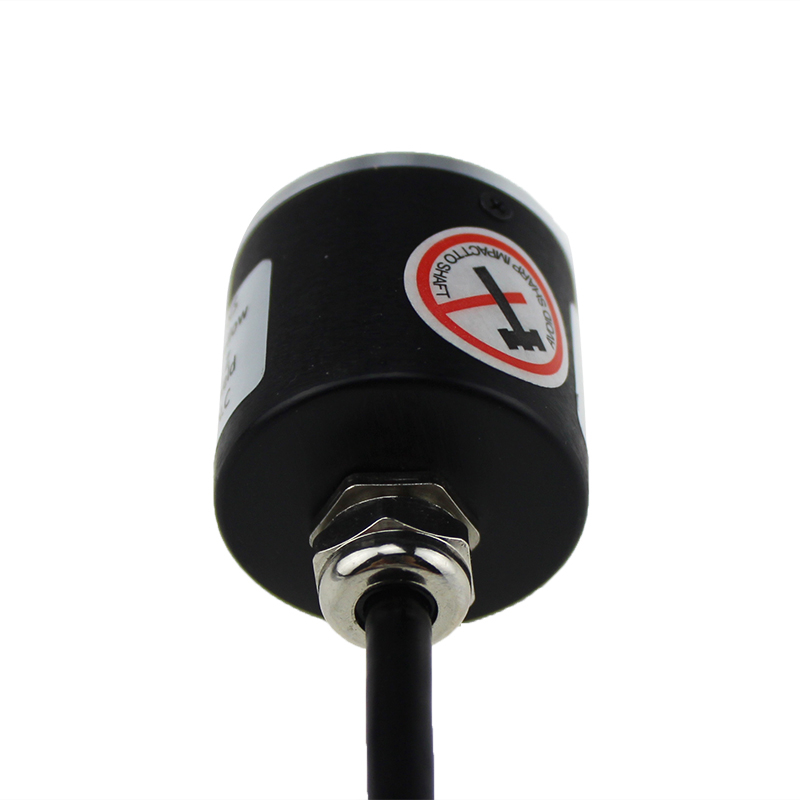

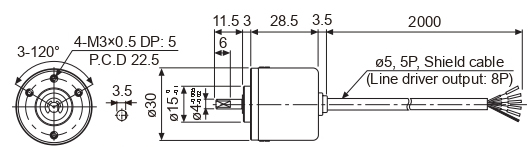

E30S4-1024-3-T-24 1024ppr Totem Pole Output Miniature Shaft Type Rotary Encoder from China manufacturer

You are here: Home » Rotary Encoder » Shaft Encoders » E30S4-1024-3-T-24 1024ppr Totem Pole Output Miniature Shaft Type Rotary Encoder

PRODUCTS CATEGORY

Model:
E30S4-1024-3-T-24

Product Description

Features

Diameter ø30mm of miniature shaft type rotary encoder
Easy installation at narrow space
Small moment of inertia
Power supply : 5VDC, 12-24VDC ±5%
Various output types

rdering information

E30S	4	1024	3	T	24
Series	Shaft diameter	Pulse	Output phase	Output phase	Output phase	Cable
Diameter ø30mm, shaft type	ø4mm	Refer to resolution	3 : A, B, Z 6 : A,A-,B, B-, Z, Z^-	T: Totem pole output N: NPN open collector output V: Voltage output L: Line driver output(*)	5 : 5VDC ±5% 24: 12-24VDC ±5%	No mark: Cable type C: Connector cable type(*)
			*Standard: A, B, Z	*The power of Line driver is only for 5VDC		*Cable length: 250mm

Specifications

Item			Diameter ø30mm shaft type of incremental rotary encoder
Resolution(P/R)			100, 200, 360, 500, 1000, 1024, 3000(Not indicated resolution is customizable.)
Electrical specification	Output phase		A, B, Z phase(Line driver : A, A-, B, B-, Z, Z-phase)
	Phase difference of output		Phase difference between A and B : T/4 ± T/8 (T=1cycle of A phase)
	Control output	Totem pole output	• Low - Load current : Max. 30mA, Residual voltage : Max. 0.4VDC • High - Load current : Max. 10mA,Output voltage(Power voltage 5VDC) : Min. (Power voltage-2.0)VDC,Output voltage(Power voltage 12-24VDC) : Min. (Power voltage-3.0)VDC
		NPN open collector output	Load current : Max. 30mA, Residual voltage : Max. 0.4VDC
		Voltage output	Load current : Max. 10mA, Residual voltage : Max. 0.4VDC
		Line driver output	• Low - Load current : Max. 20mA, Residual voltage : Max. 0.5VDC • High - Load current : Max. -20mA, Output voltage : Min. 2.5VDC
	Response time (Rise/Fall)	Totem pole output	Max. 1μs	• Measuring condition -Cable length : 2m,I sink = 20mA
		NPN open collector output	Max. 1μs
		Voltage output	Max. 1μs(5VDC : Output resistance 820Ω), Max. 2μs(12-24VDC : Output resistance 4.7kΩ)
		Line driver output	Max. 0.5μs
	Max. Response frequency		300kHz
	Power supply		• 5VDC ±5%(Ripple P-P : Max. 5%) • 12-24VDC ±5%(Ripple P-P : Max. 5%)
	Current consumption		Max. 80mA(disconnection of the load), Line driver output : Max. 50mA(disconnection of the load)
	Insulation resistance		Min. 100MΩ(at 500VDC megger between all terminals and case)
	Dielectric strength		750VAC 50/60Hz for 1 minute(Between all terminals and case)
	Connection		Cable type, 250mm connector cable type
Mechanical specification	Starting torque		Max. 20gf·cm(0.002N·m)
	Moment of inertia		Max. 20g·cm²(2×10 -6 kg·m²)
	Shaft loading		Radial : Max. 2kgf, Thrust : Max. 1kgf
	Max. allowable revolution		5000rpm
Vibration			1.5mm amplitude or 300m/s 2 at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock			Approx. Max. 50G
Environment	Ambient temperature		-10 to 70℃, storage : -25 to 85℃
	Ambient humidity		35 to 85%RH, storage : 35 to 90%RH
Protection			IP50(IEC standard)
Cable			ø5, 5-wire, Length : 2m, Shield cable(Line driver :ø5, 8-wire)
Accessory			ø4mm coupling
Approval			CE(Except line driver output)
