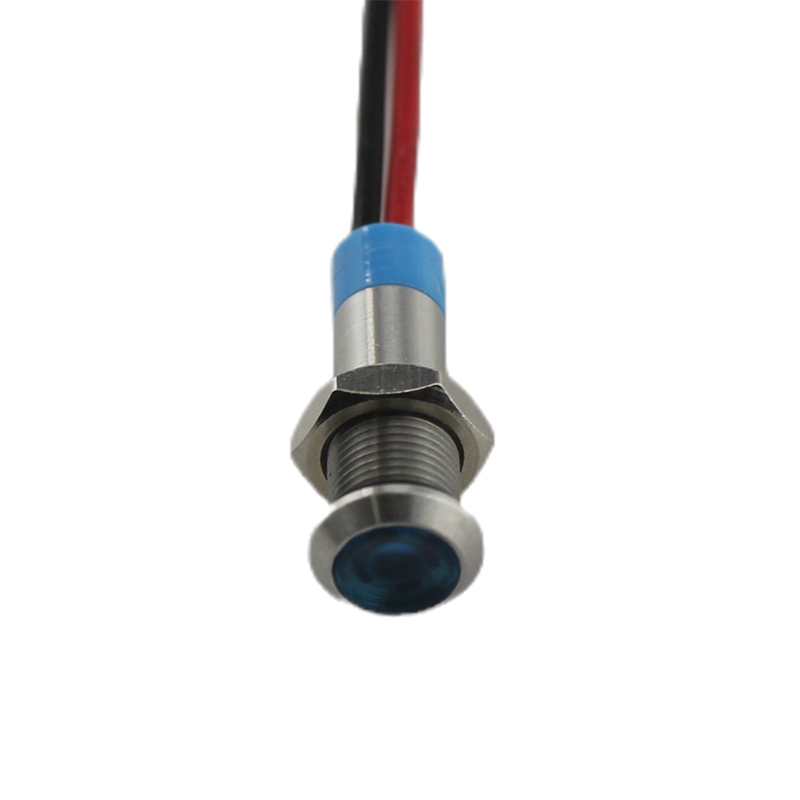

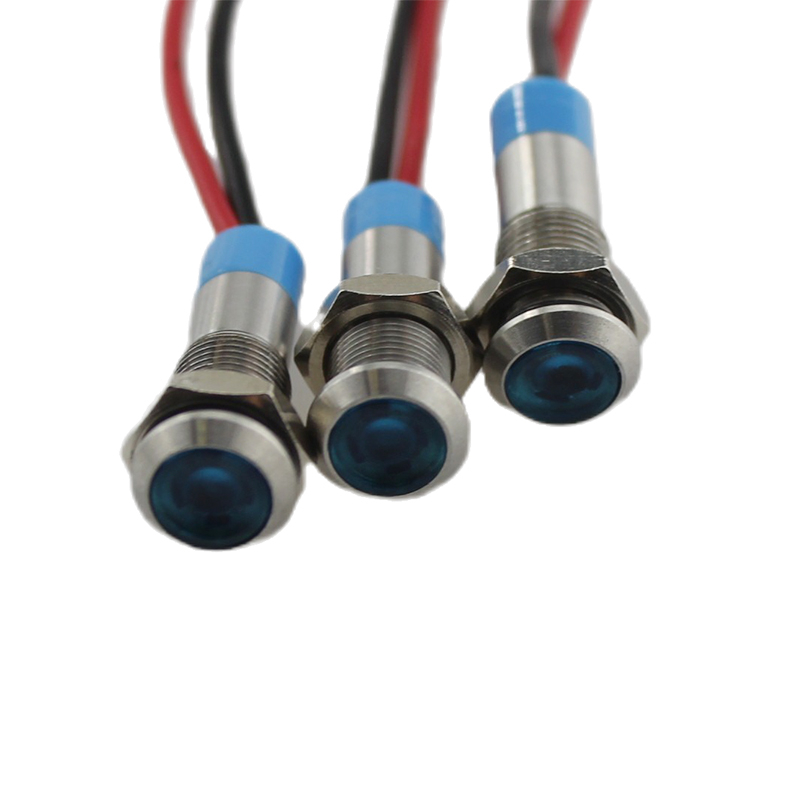

ABI06S Blue
Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance ,graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on .
Appearance design. beautiful
By highlighting the long life-span LED
Internal resistance
Ultra short installation size, installation diameter is complete
ABI | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
Single code | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
19mm | C:Power mark | W:White | 24V | ||||
22mm | 00:Four bit terminal | 36V | |||||
25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
110V | |||||||
P:Plastics | 120V |
Parameter | ABI06S |
Diameter | 6mm |
Type | LED |

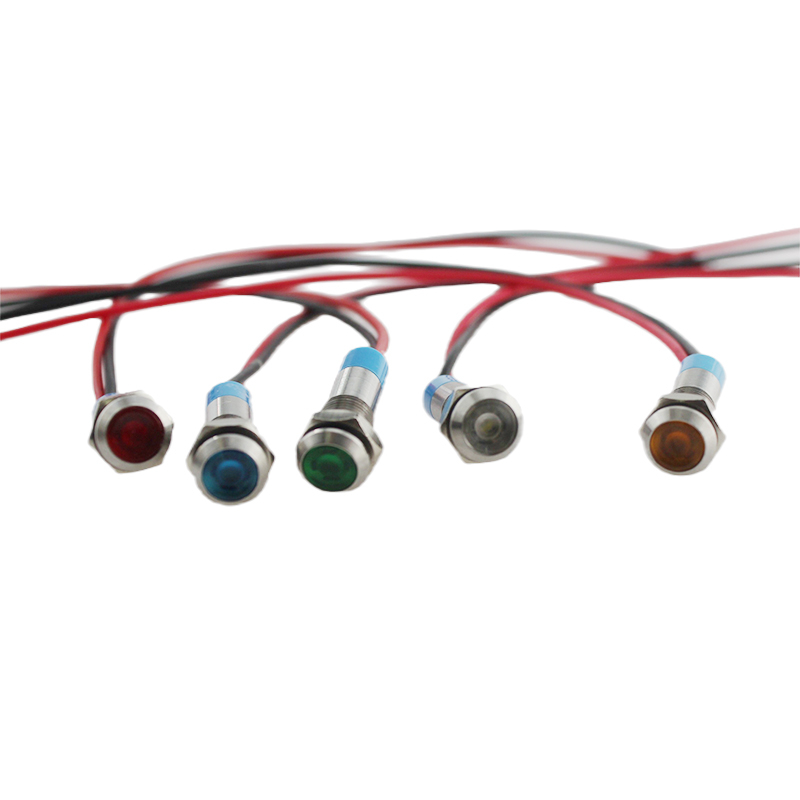

Color | R G Y O B W P RG RB |
Voltage Rating | ≤220V |
Rated Current | About 15mA |
The Crust Material | S/Stainless steel |
IP Degree | IP68, IK10 |
