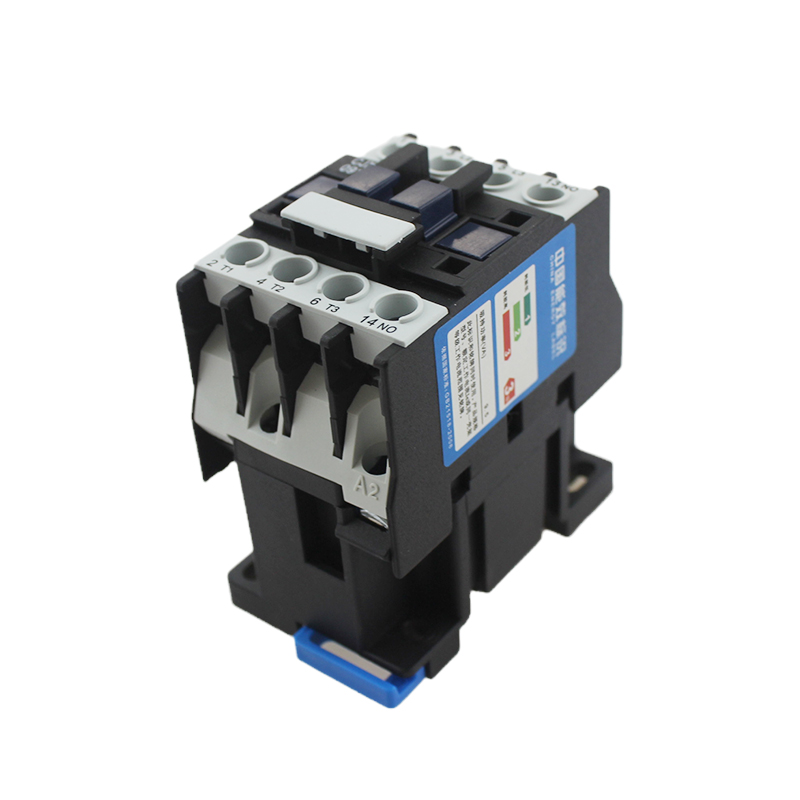

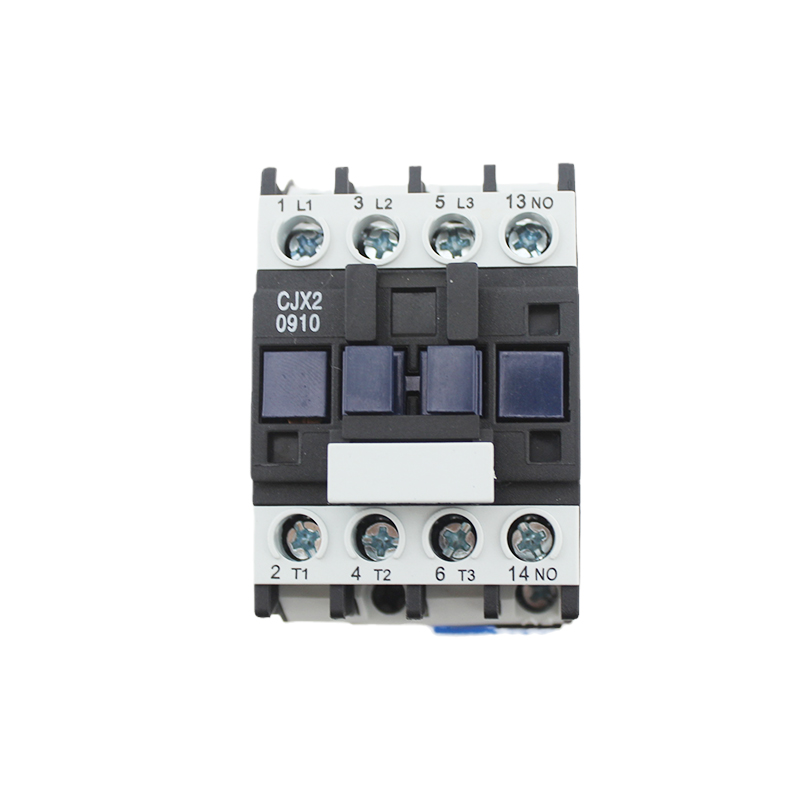

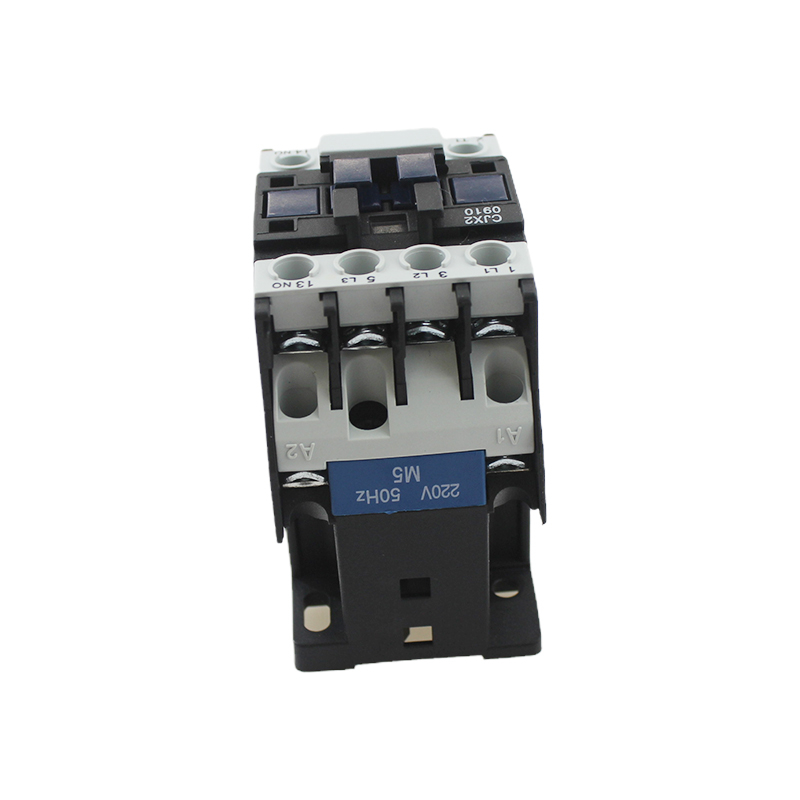

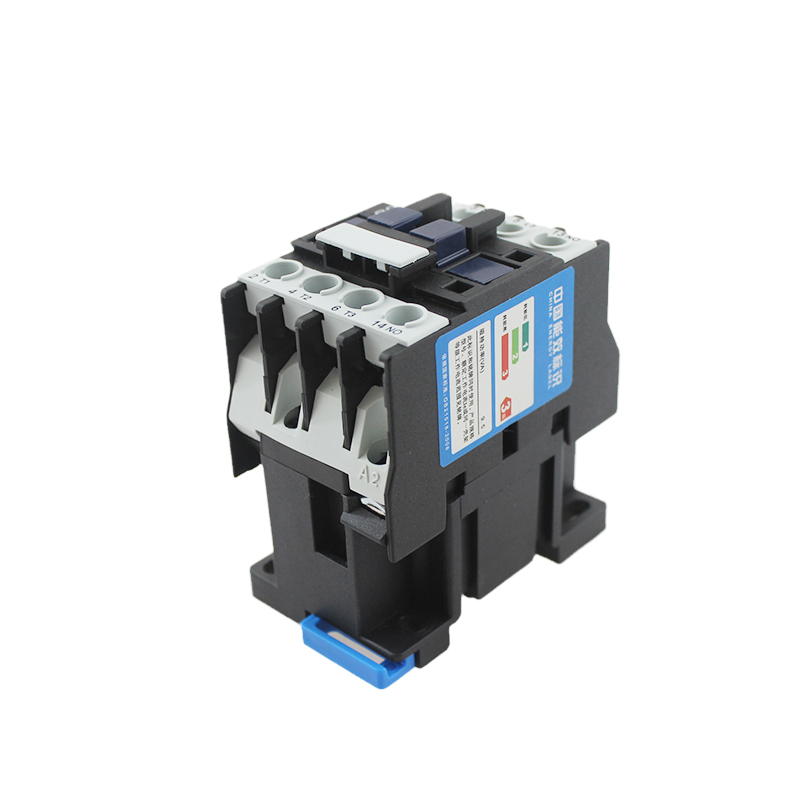

CJX2-0910 AC Contactor 9A Magnetic Contractors

Availability:
Inquire Add to Basket

  • CJX2-0910

Description

▇ General
Model numberCJX2 series
Rated coil voltage24, 36, 48, 110, 220, 380Vac
Pick up voltage0.85 to 1.10Us
Drop out voltage0.2 to 0.75Us
Rated operational voltage380V/660V
Rated Insulating voltage660V
Number of poles<40A: 3P+NO / 3P+NC; ≥40A: 3P+NO+NC
Operating frequency limits50/60Hz
Auxiliary contacts rated thermal current10A
Auxiliary contact electrical life (AC-15,360VA) (OPS)1x104
Auxiliary contact electrical life (DC-13,33W) (OPS)1x104
Auxiliary contact min. available load6V 10mA
Operating altitude2000m max
Operating position (relative to normal mounting position)±5 degree
Pollution degree3
Matched auxiliary contact1NO+1NC, 2NO, 2NC, 2NO+2NC, 3NO+1NC
Operating temperature-5 to +40 ℃
