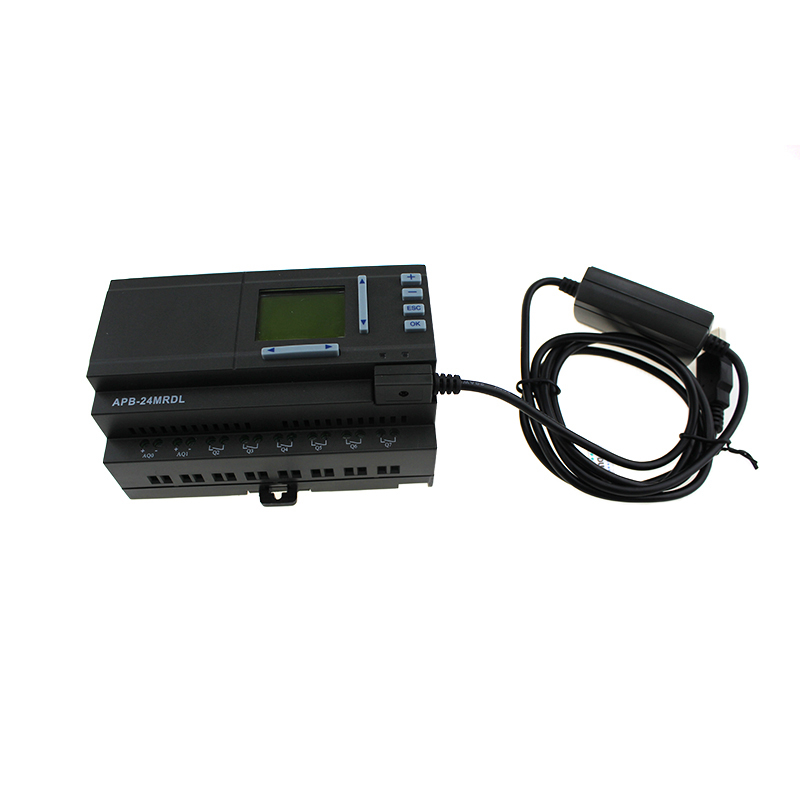

APB-DUSB
Main module:12\22\24 points: Extension module: 22 points; It is flexible for extending, and the optimal configuration: 7 I/O extension modules, 1 voice module, and 1 SMS module;
Program memory capacity: 320 FBDs, EEPROM;It is allowed to place a Li-ion battery to power the clock; Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs 0/4-20mA and 2 analog outputs 0/4-20mA; High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 50KHZ; MODBUS protocol, and can be connected to SH-300 (Text Panel); New function blocks: pulse width modulation (PWM), pulse output (PTO), ACC, SMS and analog calculation etc.
